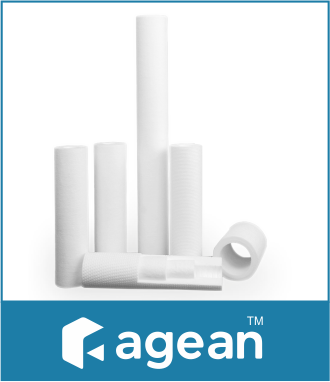

Sediment Depth Cartridges
Sediment Depth Cartridges Filter is made of 100% pure Polypropylene particles without any adhesive, and is made by fiber hot-melt entanglement. The unique three-layer gradient pore size design forms a three-dimensional slag filtering effect, which has the characteristics of high porosity, high retention efficiency, high dirt holding capacity and low pressure drop. The pure PP structure makes it have extensive chemical compatibility and is suitable for the filtration of strong acid, strong alkali and organic solvents. The advanced fiber hot-melt technology can meet the various needs of customers for this product.
AGEAN SDC SERIES 2.5" DIAMETER CARTRIDGES
The Agean Series 2.5" SDC cartridge offers a cost‑effective and reliable solution for critical pre‑filtration needs across diverse industries. Engineered for efficiency, these cartridges are widely deployed as pre‑filters in reverse osmosis (RO) systems and as post‑filters for granular activated carbon (GAC) units, ensuring consistent water quality and system protection.
Beyond RO and GAC applications, the Agean SDC cartridge demonstrates exceptional versatility in demanding environments such as Oil & Gas operations, power generation plants, laboratory filtration, food and beverage processing, pharmaceutical manufacturing, and seawater desalination facilities. Its robust design and dependable performance make it a trusted choice wherever high‑quality filtration is essential.
AGEAN SDC SERIES 4.5" DIAMETER CARTRIDGES
The Agean Series 4.5" SDC filters are engineered with true multi‑stage depth filtration, integrating three distinct layers of micron separation into a single cartridge. This advanced design ensures that the outermost layer captures larger particles first, dramatically reducing pressure drop compared to conventional filters.
By progressively trapping contaminants layer‑by‑layer, the SDC Series delivers exceptional dirt‑holding capacity, far surpassing standard spun polypropylene and string‑wound alternatives. The result is a filter that combines efficiency, longevity, and reliability, making it the preferred choice for demanding industrial and commercial applications where consistent performance is critical.
| 2.5" DIAMETER SPECIFICATIONS | ||||
|---|---|---|---|---|
| Part Number | Description | Micron Rating | Case Quantity | |
| 10″ | SDC-25-1001 | 2.5"x 10" | 1 | 100 |
| SDC-25-1005 | 2.5"x 10" | 5 | 100 | |
| SDC-25-1010 | 2.5"x 10" | 10 | 100 | |
| SDC-25-1020 | 2.5"x 10" | 20 | 100 | |
| SDC-25-1050 | 2.5"x 10" | 50 | 100 | |
| 20″ | SDC-25-2001 | 2.5"x 20" | 1 | 50 |
| SDC-25-2005 | 2.5"x 20" | 5 | 50 | |
| SDC-25-2010 | 2.5"x 20" | 10 | 50 | |
| SDC-25-2020 | 2.5"x 20" | 20 | 50 | |
| SDC-25-2050 | 2.5"x 20" | 50 | 50 | |
| 30″ | SDC-25-3001 | 2.5"x 30" | 1 | 25 |
| SDC-25-3005 | 2.5"x 30" | 5 | 25 | |
| SDC-25-3010 | 2.5"x 30" | 10 | 25 | |
| SDC-25-3025 | 2.5"x 30" | 25 | 25 | |
| SDC-25-3075 | 2.5"x 30" | 75 | 25 | |
| 40″ | SDC-25-4001 | 2.5"x 40" | 1 | 25 |
| SDC-25-4005 | 2.5"x 40" | 5 | 25 | |
| SDC-25-4010 | 2.5"x 40" | 10 | 25 | |
| SDC-25-4025 | 2.5"x 40" | 25 | 25 | |
| SDC-25-4075 | 2.5"x 40" | 75 | 25 | |
| 50″ | SDC-25-5005 | 2.5"x 50" | 5 | 25 |
*For more detailed information, please contact our team.
| 4.5" DIAMETER SPECIFICATIONS | ||||
|---|---|---|---|---|
| Part Number | Description | Micron Rating | Case Quantity | |
| 10" | SDC-45-1001 | 4.5" x 10" | 1 | 36 |
| SDC-45-1005 | 4.5" x 10" | 5 | 36 | |
| SDC-45-1010 | 4.5" x 10" | 10 | 36 | |
| SDC-45-1020 | 4.5" x 10" | 20 | 36 | |
| SDC-45-1050 | 4.5" x 10" | 50 | 36 | |
| 20" | SDC-45-2001 | 4.5" x 20" | 1 | 20 |
| SDC-45-2005 | 4.5" x 20" | 5 | 20 | |
| SDC-45-2010 | 4.5" x 20" | 10 | 20 | |
| SDC-45-2020 | 4.5" x 20" | 20 | 20 | |
| SDC-45-2050 | 4.5" x 20" | 50 | 20 | |
*For customized packing, please contact our team.
